Filter for particle and liquid deposition
| Product Name | Description |
|---|---|
|
Filter, Housing material Stainless steel Model PC 1410 E |
Particle and coalescence filter for deposition of liquids and particles
|
|
Filter, Housing material Stainless steel. XL housing volume Modell PC 1410 E XL |
Particle and coalescence filter for deposition of liquids and particles
|
|
Filter, Housing material Polyvinylidene fluoride and with carbon, electroconductive Model PC 1410 PVDF EL / Model PC 1410 PVDF EL |
Particle and coalescence filter for deposition of liquids and particles
|
Product detail :
Particle and coalescence
filter

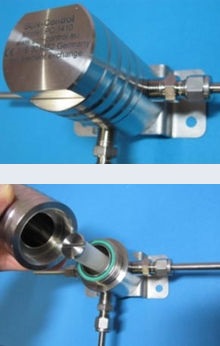

model PC 1410 E in a stainless steel housing
- Deposition of liquids
- One housing - two filter types
- Self-cleaning using bypass connection
- Less space requirement thanks to horizontal installation
- Can be used up to 350 bar and 200°C
- Certificates: NACE-MR0175-98, Pressure Equipment Directive, ATEX, 3.1B material -
Gas connections on the lower p aqrut aolfi ttyh cee hrtoiufisciantge
- “Easy-Filter-Change System” Easy filter element change from the front It is not necessary
to remove the screw connections!
- Good price/performance ratio
- Made in Germany
For installation examples of the products, refer to “Installation examples of SUN-Control-Analytik products”
Functional description:

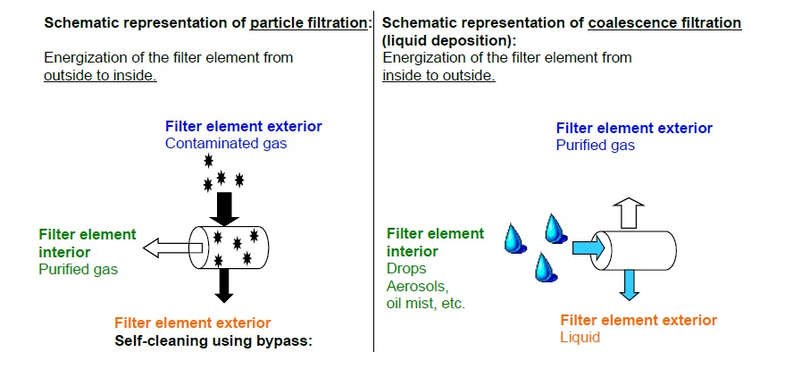

The PC 1410 model is used in the gas processing during the process gas analytics. The horizontal installation position allows less space requirement. Thanks to different filter elements, gases/liquids can be filtered (particle filter function) or liquids/aerosols can be deposited (coalescence filter function). All the gas connections have been provided for this. The filter housing can be rotated by 360° such that all the connection variants of the gas inlets and gas outlets are possible. The filter element is exchanged in a very service-friendly manner from the front side of the filter. A fussy removal of the screw connections is no longer necessary as all the gas connections are located on the firmly mounted filter base. The filter element is blocked by a retaining screw and thus cannot fall out inadvertently. The possibility of connecting a bypass is provided.

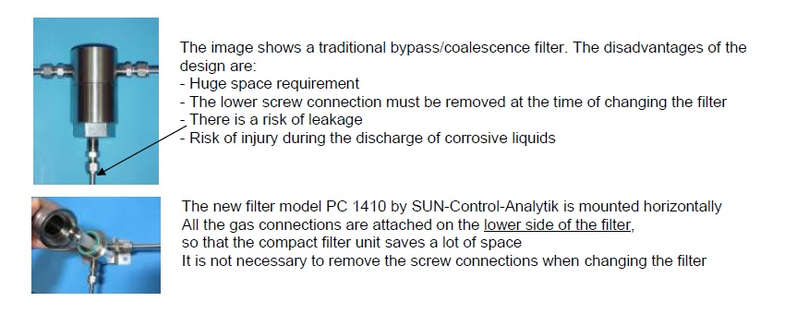

Comparison of the traditional filter technology with the new SUN-Control-Analytik filter
Technical specifications PC 1410 E (stainless steel):
| Scope of delivery: | Housing, retaining screw for filter element, O-ring FKM (Viton) Assembly bracket (optional), filter element (optional) |
| Materials used: | Stainless steel type 1.4571, FKM (Viton), silicate glass (filter element), Duran glass (optional) |
| Max. internal pressure of housing: | 350 bar. With Duran glass, max. 5 bar (at 25°C), max. 4 bar (at 80°C) |
| Max. recommended gas flow: | 1000 l air/h |
| Pressure drop at 100 l air/h: | approx. 5 mbar |
| Pressure drop at 200 l air/h: | approx. 10 mbar |
| Flow rate of the liquid: | 400 l water/h at 1 bar pressure |
| Flow rate of the liquid: | 500 l water/h at 2 bar pressure |
| Maximum operating temperature: | - 20°C/200°C (with FKM Viton O-ring) up to 350°C upon request |
| Maximum operating temperature: - | - 50°C/200°C (with PTFE O-ring) |
| In case of Duran glass, only Viton O-ring: | - 5 °C/80 °C |
| Housing dimensions: | Diameter 60 mm, length 100 mm |
| Volume: | 35 ml |
| Effective filter area: | approx. 70 cm 2 |
| Gas connection 1: | ¼“ NPT inside thread (filter element exterior) |
| Gas connection 2: | ¼“ NPT inside thread (filter element interior) |
| Gas connection 3: | ¼“ NPT inside thread (filter element exterior) |
| Gas connection 4: | ¼“ NPT inside thread (filter element exterior) (G-thread upon request) |
| Assembly: | - Wall mounting using retaining bracket (optional)
- Front panel mounting using retaining bracket (optional) |
| Operating instructions in the following national languages: | German and English (included in the scope of delivery)
Spanish, Italian, French, Russian upon request |
| Certificates: (Please specify at the time of placing an order) | NACE-MR0175-98, Pressure Equipment Directive,
ATEX 94/9/EC-EN 1127-1, 3.1 material quality certificate |
Order numbers:
Filter housing:
| Item | Item number |
|---|---|
| Filter housing, material stainless steel 1.4571 (316 Ti), upper part of filter made of stainless steel, with retaining screw for filter element, without assembly bracket | PC1410E |
| Filter housing, material stainless steel 1.4571 (316 Ti), upper part of filter made of Duran glass, with retaining screw for filter element, with O-ring made of FKM (Viton), without filter element, without assembly bracket | PC1410ED |
| Filter housing made of Hastelloy HC 22 |
Filter elements:
| Item | Item number |
|---|---|
| Set (5 units) of filter elements for particle filtration, Material borosilicate micro glass fibres, pore size 0.1 μm, deposition rate 99.999% | FEPPC1410 |
| Set (5 units) of filter elements for coalescence application (removal of oils and aerosoles) Material borosilicate micro glass fibres, pore size 0.1 μm, deposition rate 99.999% | FECPC1410 |
| 1 unit of filter element for particle filtration, Material PTFE-porous, pore size 0.1 μm (for gas components SO2, NO2) | FEPTFEPC1410 |
| 1 unit of filter element for filtration of liquids made of stainless steel 1.4401 pore size 1 μm | FESS1PC1410 |
| 1 unit of filter element for filtration of liquids made of stainless steel 1.4401 pore size 10 μm | FESS10PC1410 |
| 1 unit of filter element for filtration of liquids made of stainless steel 1.4401 pore size 25 μm | FESS25PC1410 |
Filter accessories and spare parts:
| Item | Item number |
|---|---|
| 1 unit of blind plug made of stainless steel, for locking the unused gas connection | VSPC1410 E |
| 1 unit of assembly bracket made of stainless steel 1.4571 for wall mounting | MONWIWAMOPC1410 |
| 1 unit of assembly bracket made of stainless steel 1.4571 for front panel installation | MONWIFROPPC1410 |
|
Accessories: |
|

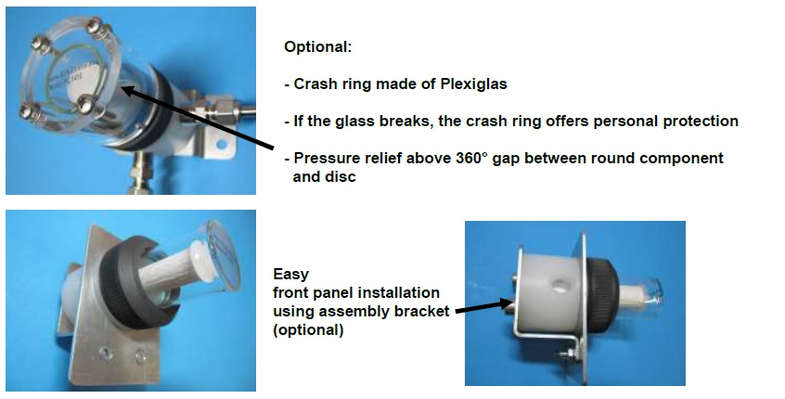

| Crash ring made of Plexiglas for Duran glass filter upper part | BSPC1410 |
|
Spare parts: |
|
| 1 unit of filter upper part made of Duran glass | FODGPC1410 |
| 1 unit of O-ring FKM (Viton) standard | ORPC1410FKM |
| 1 unit of O-ring PTFE | ORPC1410PTFE |
| 1 Stück O-Ring FFKM | ORPC1410FFKM |
Note: The standard product is equipped with FKM O-rings
Note Blind plug: The PC 1410 model has 4 gas connections. If only two are used
e.g. when using the particle filter (GAS-IN and GAS-OUT), two blind plugs will be required.
If you additionally connect a bypass, only one blind plug is necessary in that case.
Please adhere to this in your next order.
Bitte beachten Sie dies bei Ihrer nächsten Bestellung.
Ordering aid: what do I need for a complete filter?
1. Filter housing
2. Filter element
3. Assembly bracket (you can also use your own system)
4. Blind plug (the filter housing has 4 connections)
Product detail :
Particle and coalescence
filter

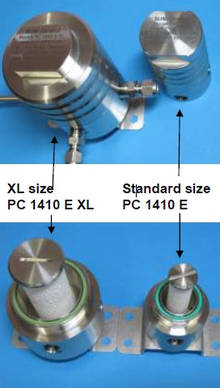

model PC 1410 E XL in a stainless steel housing
- XL housing variant
- 4x size of the standard product
- Deposition of liquids
- One housing -
two filter types
- Self-cleaning using bypass connection
- Less space requirement thanks to
horizontal installation
- Can be used up to 350 bar and 200°C
- Certificates: NACE-MR0175-98, Pressure Equipment Directive, ATEX, 3.1 material quality
certificate
- Gas connections on the lower part of the housing
- “Easy-Filter-Change System” Easy filter element change from the front It is
not necessary to remove the screw connections!
- Good price/performance ratio
- Made in Germany
For installation examples of the products, refer to “Installation examples of SUN-Control-Analytik products”
Technical specifications PC 1410 E XL:
| specifications PC 1410 E XL: | Housing, retaining screw for filter element, O-ring FKM (Viton) Assembly bracket (optional), filter element (optional) |
| Materials used: | Stainless steel type 1.4571, FKM (Viton), silicate glass (filter element) |
| Max. internal pressure of housing: | 350 bar. With Duran glass, max. 3 bar (at 25°C), max. 2 bar (at 80°C) |
| Max. recommended gas flow: | 3000 l air/h |
| Pressure drop at 100 l air/h: | approx. 3 mbar |
| Pressure drop at 200 l air/h: | approx. 5 mbar |
| Flow rate of the liquid: | 800 l water/h at 1 bar pressure |
| Flow rate of the liquid: | 1000 lwater/h at 2 bar pressure |
| Maximum operating temperature: | - 20 °C/200 °C (with FKM Viton O-ring) up to 350°C upon request |
| Maximum operating temperature: | - 50 °C/200 °C(with PTFE O-ring) |
| In case of Duran glass, only Viton O-ring: | - 5 °C/80 °C |
| Housing dimensions: | Diameter 75 mm, length 120 mm |
| Volume: | 100 ml |
| Effective filter area: | approx. 280 cm 2 |
| Gas connection 1: | ¼“ NPT inside thread (filter element exterior) |
| Gas connection 2: | ¼“ NPT inside thread (filter element interior) |
| Gas connection 3: | ¼“ NPT inside thread (filter element exterior) |
| Gas connection 4: | ¼“ NPT inside thread (filter element exterior) (G-thread upon request) |
| Assembly: | - Wall mounting using retaining bracket (optional) |
| Operating instructions in the following national languages: | German and English (included in the scope of delivery)
Spanish, Italian, French, Russian upon request |
| Certificates: (Please specify at the time of placing an order) | NACE-MR0175-98, Pressure Equipment Directive,
ATEX 94/9/EC-EN 1127-1, 3.1 material quality certificate |
Order numbers:
Filter housing:
| Item | Item number |
|---|---|
| Filter housing, Material stainless steel 1.4571 (316 Ti), filter upper part made of stainless steel, with retaining screw for filter element, with O-ring made of FKM (Viton), without filter element, without assembly bracket | PC1410EXL |
| Filter housing, Material stainless steel 1.4571 (316 Ti), filter upper part made of Duran glass, with retaining screw for filter element, with O-ring made of FKM (Viton), without filter element, without assembly bracket | PC1410EDXL |
| Filter housing, Material Hastelloy HC 22 |
Filter elements:
| Item | Item number |
|---|---|
| Set (5 units) of filter elements for particle filtration, Material borosilicate micro glass fibres, pore size 0.1 μm, deposition rate 99.999% | FEPPC1410XL |
| Set (5 units) of filter elements for coalescence application (removal of oils and aerosoles), Material borosilicate micro glass fibres, pore size 0.1 μm, deposition rate 99.999% | FECPC1410XL |
| 1 unit of filter element for particle filtration, Material PTFE-porous, pore size 0.1 μm (for gas components SO2, NO2) | FEPTFEPC1410XL |
| 1 unit of filter element for filtration of liquids made of stainless steel 1.4401 pore size 1 μm | FESS1PC1410XL |
| 1 unit of filter element for filtration of liquids made of stainless steel 1.4401 pore size 10 μm | FESS10PC1410XL |
| 1 unit of filter element for filtration of liquids made of stainless steel 1.4401 pore size 25 μm | FESS25PC1410XL |
Ordering aid: what do I need for a complete filter?
1. Filter housing
2. Filter element
3. Assembly bracket (you can also use your own system)
4. Blind plug (the filter housing has 4 connections)
Filter accessories and spare parts:
| Item | Item number |
|---|---|
| 1 unit of bling plug made of stainless steel, for locking the unused gas connection | VSPC1410 E |
| 1 unit of assembly bracket made of stainless steel 1.4571 for wall mounting | MONWIWAMOPC1410 |
| 1 unit of filter upper part, Duran glass | FODGPC1410XL |
| 1 unit of O-ring FKM (Viton) standard | ORPC1410XLFKM |
| 1 unit of O-ring PTFE | ORPC1410XLPTFE |
| 1 unit of O-ring FFKM | ORPC1410XLFFKM |
Note: The standard product is equipped with FKM O-rings.
Note Blind plug: The PC 1410 model has 4 gas connections. If only two are used
e.g. when using the particle filter (GAS-IN and GAS-OUT), two blind plugs will
be required. If you additionally connect a bypass, only one blind plug is necessary in
that case.
Please adhere to this in your next order
Product detail :
Particle and coalescence
filter

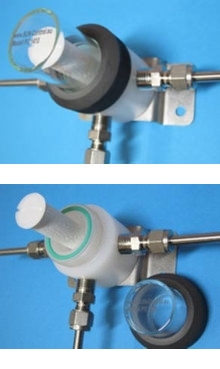

model PC 1410 PVDF
model PC 1410 PVDF EL
- One housing - two filter types
- Less space requirement thanks to horizontal installation
- Gas connections on the lower part of the housing
- “Easy-Filter-Change System” Easy filter element change from the front It is not necessary to remove the screw connections!
- Bypass connection provided
- Good price/performance ratio
- Made in Germany
For installation examples of the products, refer to “Installation examples of SUN-Control-Analytik products”
Functional description:

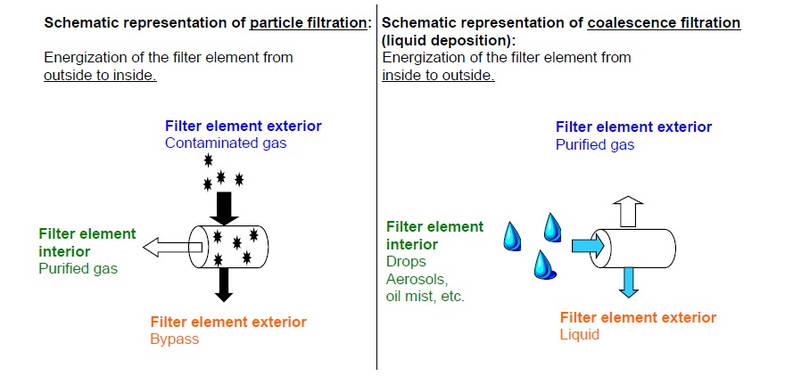

The PC 1410 model is used in the gas processing during the process gas analytics. The horizontal installation position allows less space requirement. Thanks to different filter elements, gases/liquids can be filtered (particle filter function) or liquids/aerosols can be deposited (coalescence filter function). All the gas connections have been provided for this. The filter housing can be rotated by 360° such that all the connection variations of the gas inlets and gas outlets are possible. The filter element is exchanged in a very service-friendly manner from the front side of the filter. A fussy removal of the screw connections is not necessary as all the gas connections are located on the firmly mounted filter base. The filter element is blocked by a retaining screw and thus cannot fall out inadvertently. The possibility of connecting a bypass is provided.
Technical specifications PC 1410 PVDF:
| Scope of delivery: | Scope of delivery: Housing, retaining screw for filter element, O-ring FKM (Viton) Assembly bracket (optional), filter element (optional) |
| Max. internal pressure of housing: | max. 5 bar (at 25°C), max. 4 bar (at 80°C) |
| Max. recommended gas flow: | 1000 l air/h |
| Pressure drop at 100 l air/h: | approx. 5 mbar |
| Pressure drop at 200 l air/h: | approx. 10 mbar |
| Flow rate of the liquid: | 400 l water/h at 1 bar pressure |
| Flow rate of the liquid: | 500 l water/h at 2 bar pressure |
| Maximum operating temperature: | - 5 °C/90 °C |
| Housing dimensions: | Diameter 60 mm, length 100 mm |
| Volume: | 35 ml |
| Effective filter area: | approx. 70 cm 2 |
| Gas connection 1: | ¼“ G - inside thread (filter element exterior) |
| Gas connection 2: | ¼“ G - inside thread (filter element interior) |
| Gas connection 3: | ¼“ G - inside thread (filter element exterior) |
| Gas connection 4: | ¼“ G - inside thread (filter element interior) |
| Assembly: | - Wall mounting using retaining bracket (optional)
- Front panel mounting using retaining bracket (optional) |
| Operating instructions in the following national languages: | German and English (included in the scope of delivery)
Spanish, Italian, French, Russian upon request |
| Materials used: | |
| PC 1410 PVDF | PVDF, FKM, Duran glass (upper part of the filter) |
| PC 1410 PVDF EL | PVDF (polyvinylidene fluoride) with carbon content, electroconductive (10 6 Ω/mtr.) Housing colour black,, FKM, Duran glass (upper part of the filter) |
Order numbers:
| Item | Item number |
|---|---|
| Filter housing material PVDF, filter upper part made of Duran glass, with retaining screw for filter element, with O-ring made of FKM (Viton), without filter element, without assembly bracket | PC1410PVDF |
| Filter housing material PVDF EL, filter upper part made of Duran glass, with retaining screw for filter element, with O-ring made of FKM (Viton), without filter element, without assembly bracket | PC1410PVDFEL |
| Set (5 units) of filter elements for particle filtration, Material borosilicate
micro glass fibres, pore size 0.1 μm, deposition rate
99.999% |
FEPPC1410 |
| Set (5 units) of filter elements for coalescence application (removal of oils and aerosoles), Material borosilicate micro glass fibres, pore size 0.1 μm, deposition rate 99.999% | FECPC1410 |
| 1 unit of filter element for particle filtration, Material PTFE-porous, pore size 0.1 μm (for gas components SO2, NO2) | FEPTFEPC1410 |
| 1 unit of filter element for filtration of liquids made of stainless steel 1.4401 pore size 1 μm | FESS1PC1410 |
| 1 unit of filter element for filtration of liquids made of stainless steel 1.4401 pore size 10 μm | FESS10PC1410 |
| 1 unit of filter element for filtration of liquids made of stainless steel 1.4401 pore size 25 μm | FESS25PC1410 |
| 1 unit of blind plug PVDF, for locking the unused gas connection | VSPC1410PVDF |
| 1 unit of assembly bracket made of stainless steel 1.4571 for wall mounting | MONWIPC1410 |

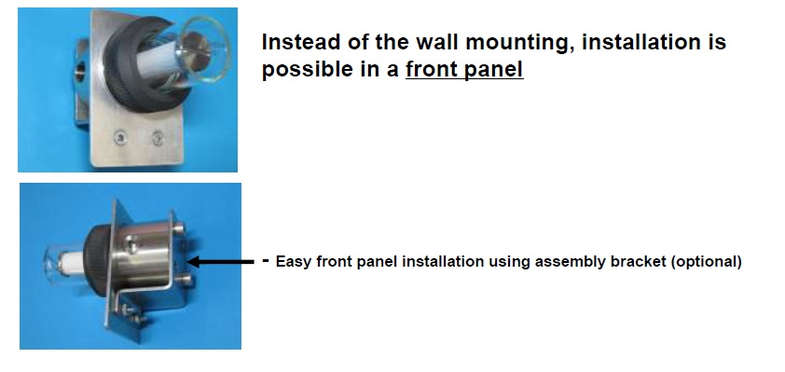

| 1 unit of assembly bracket made of stainless steel 1.4571 for front panel installation | MONWIFROPPC1410 |
|
Accessories: |
|

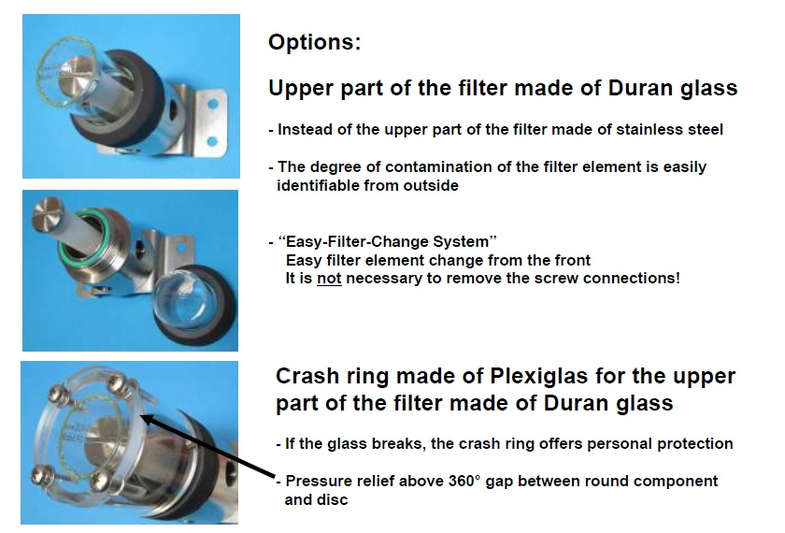

| Crash ring made of Plexiglas for Duran glass filter upper part | BSPC1410 |
|
Spare parts: |
|

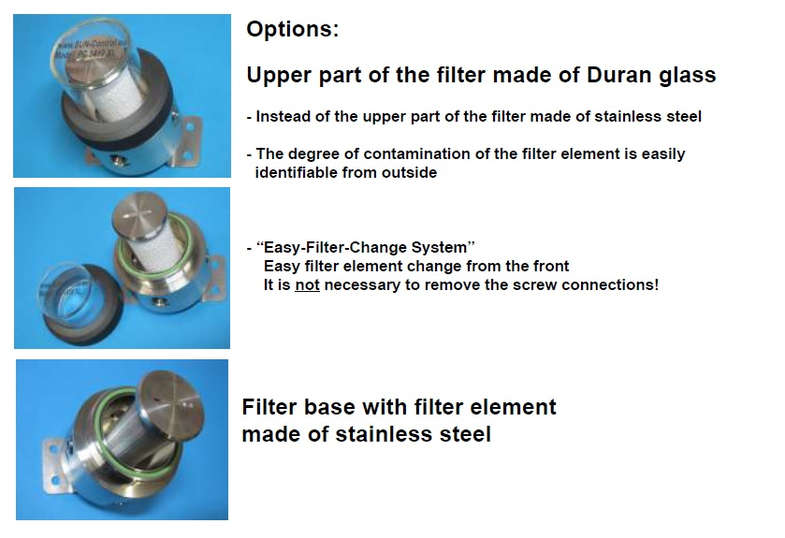

| 1 unit of filter upper part made of Duran glass | FODGPC1410 |
| 1 unit of O-ring FKM (Viton) standard | ORPC1410FKM |
| 1 unit of O-ring PTFE | ORPC1410PTFE |
| 1 unit of O-ring FFKM | ORPC1410FFKM |
Note Blind plug: The PC 1410 model has 4 gas connections. If only two are used
e.g. when using the particle filter (GAS-IN and GAS-OUT), two blind plugs will be required.
If you additionally connect a bypass, only one blind plug is necessary in that case.
Please adhere to this in your next order.
Ordering aid: what do I need for a complete filter?
1. Filter housing
2. Filter element
3. Assembly bracket (you can also use your own system)
4. Blind plug (the filter housing has 4 connections)
QR CODE
ID : abc-corp
